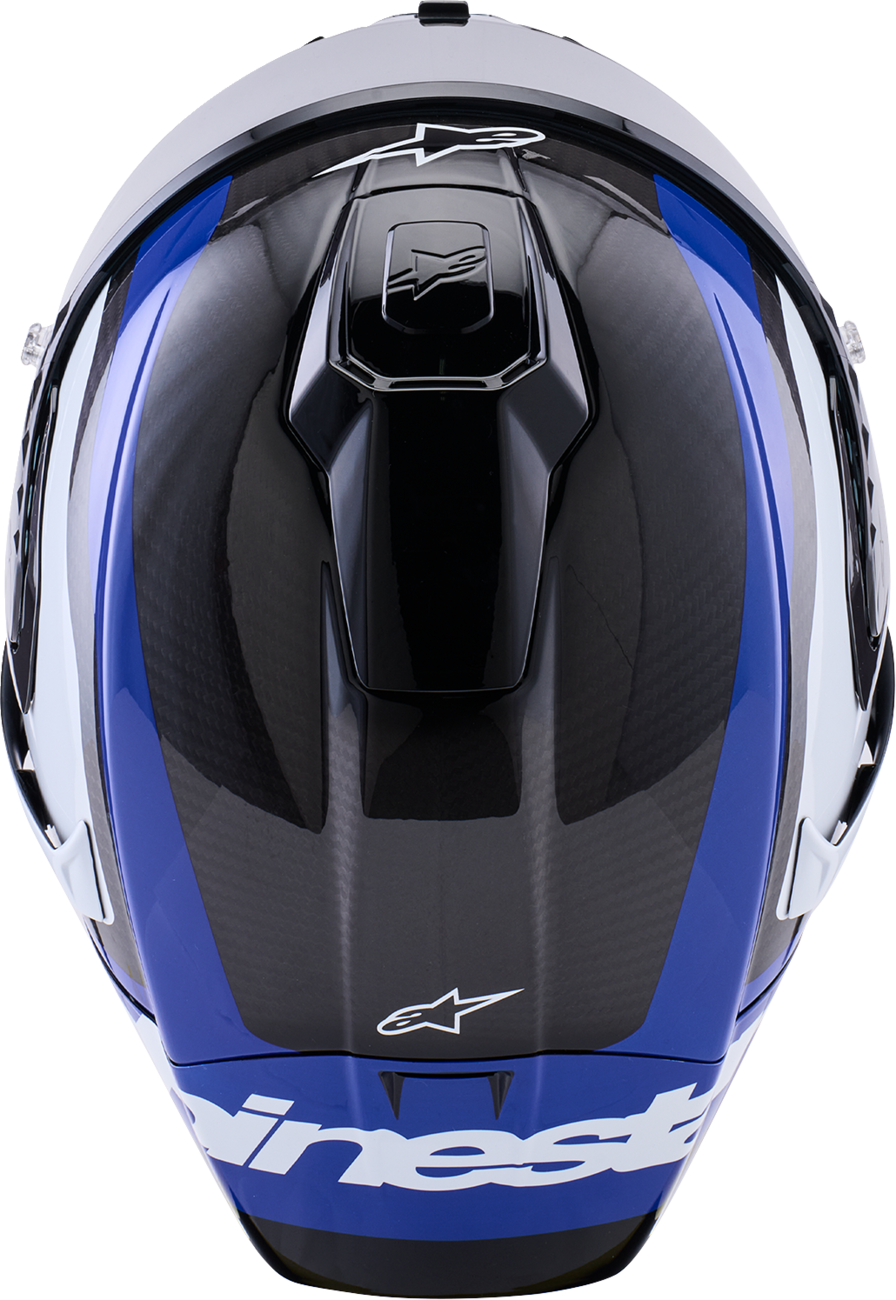

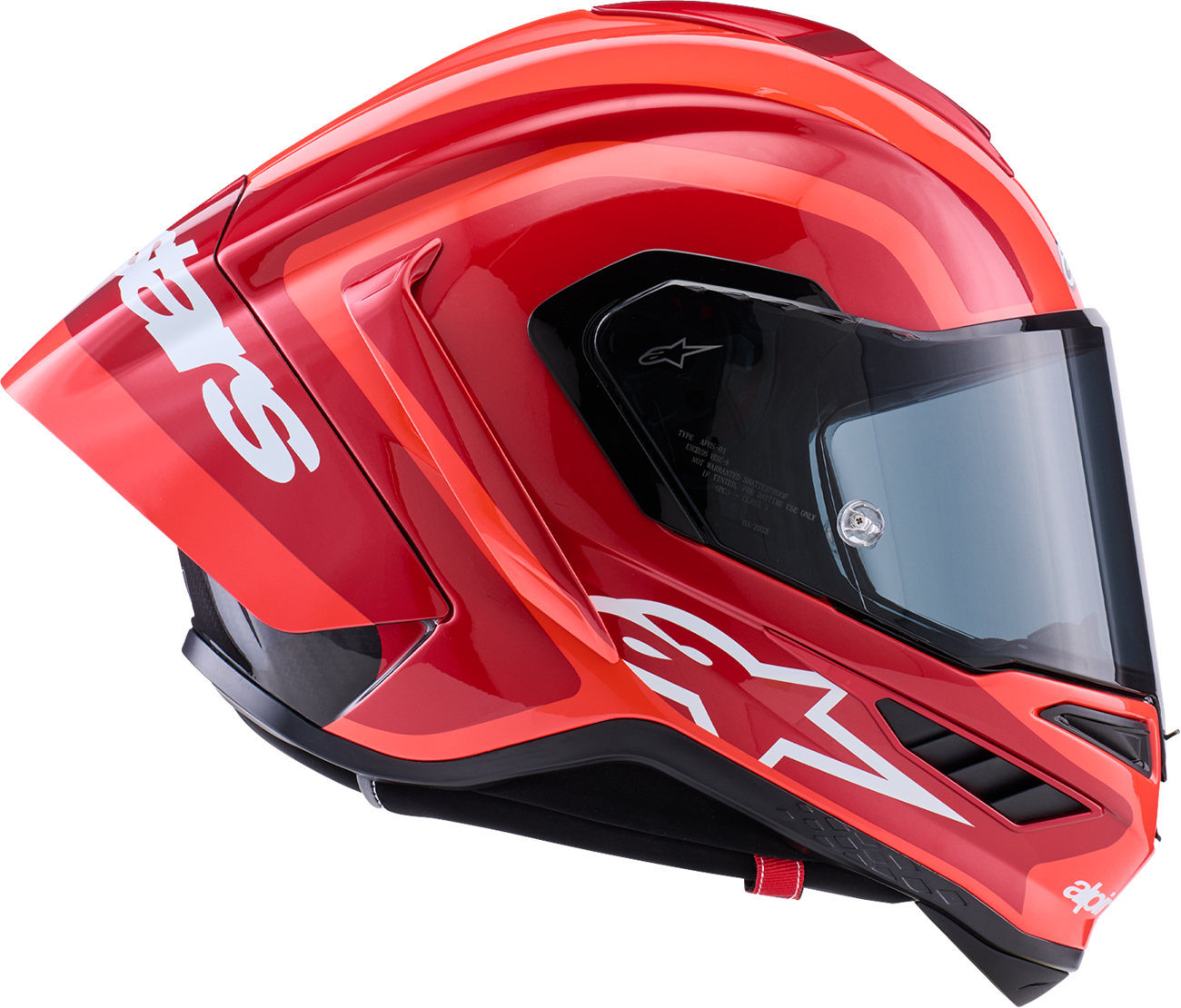

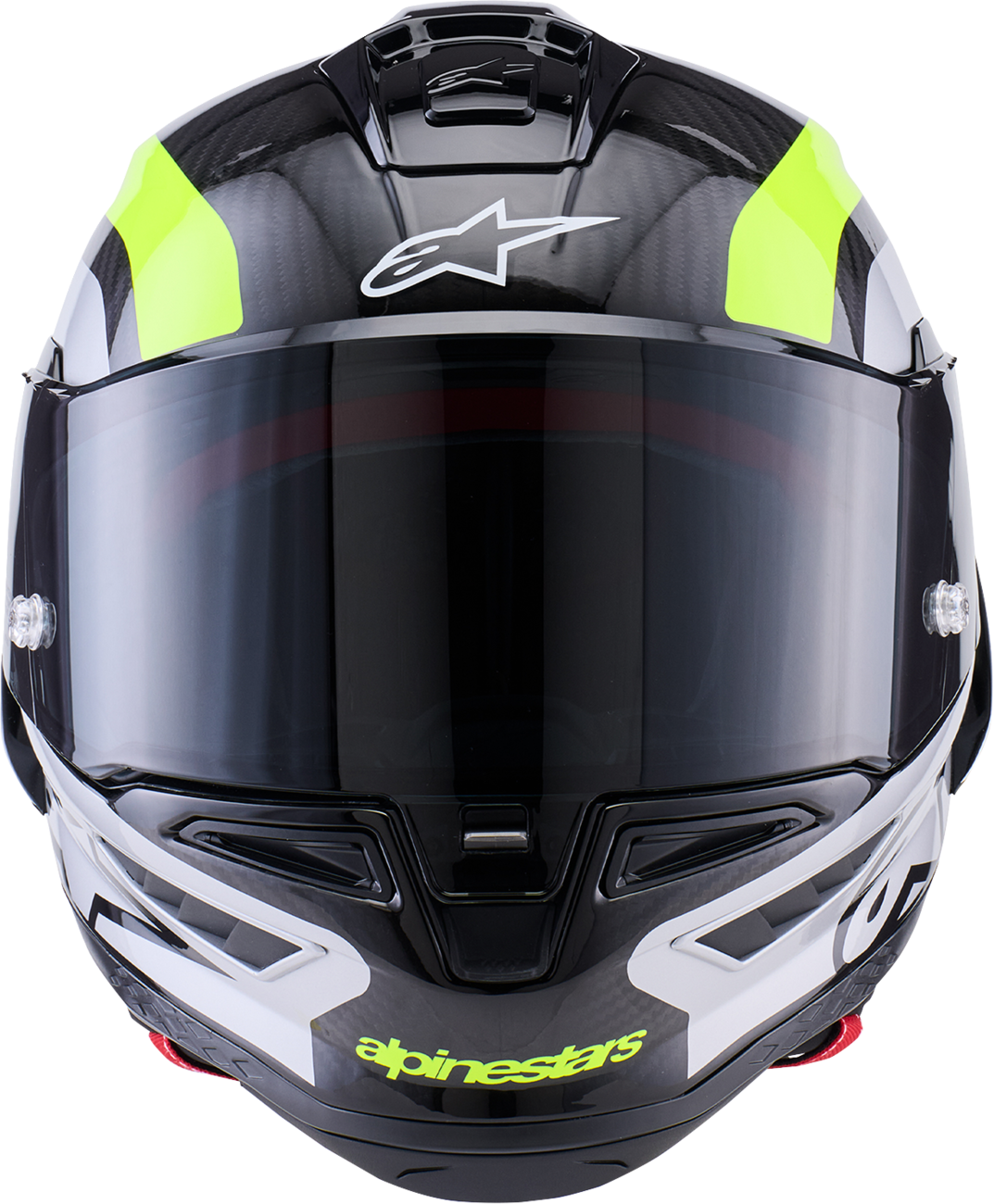

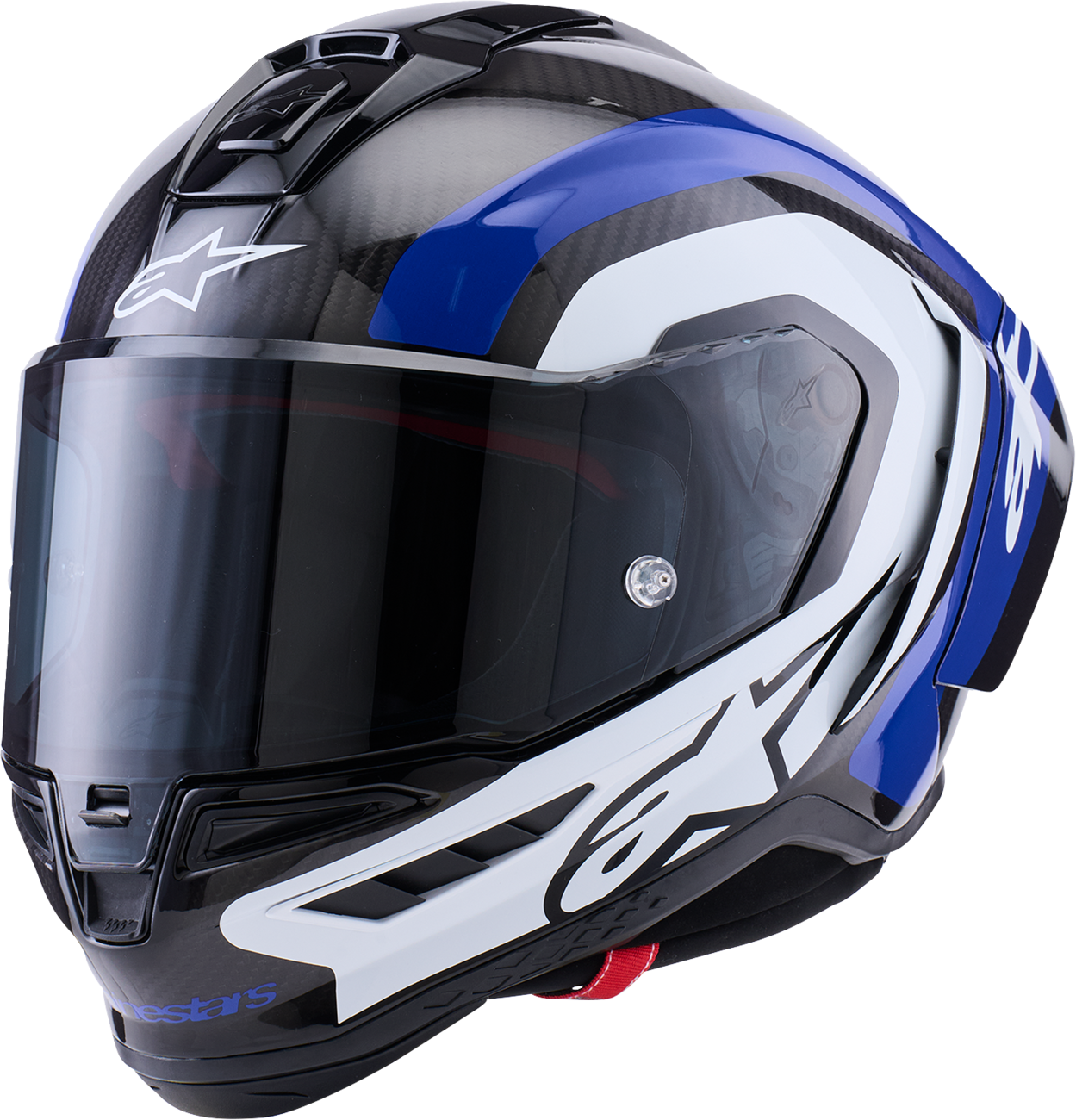

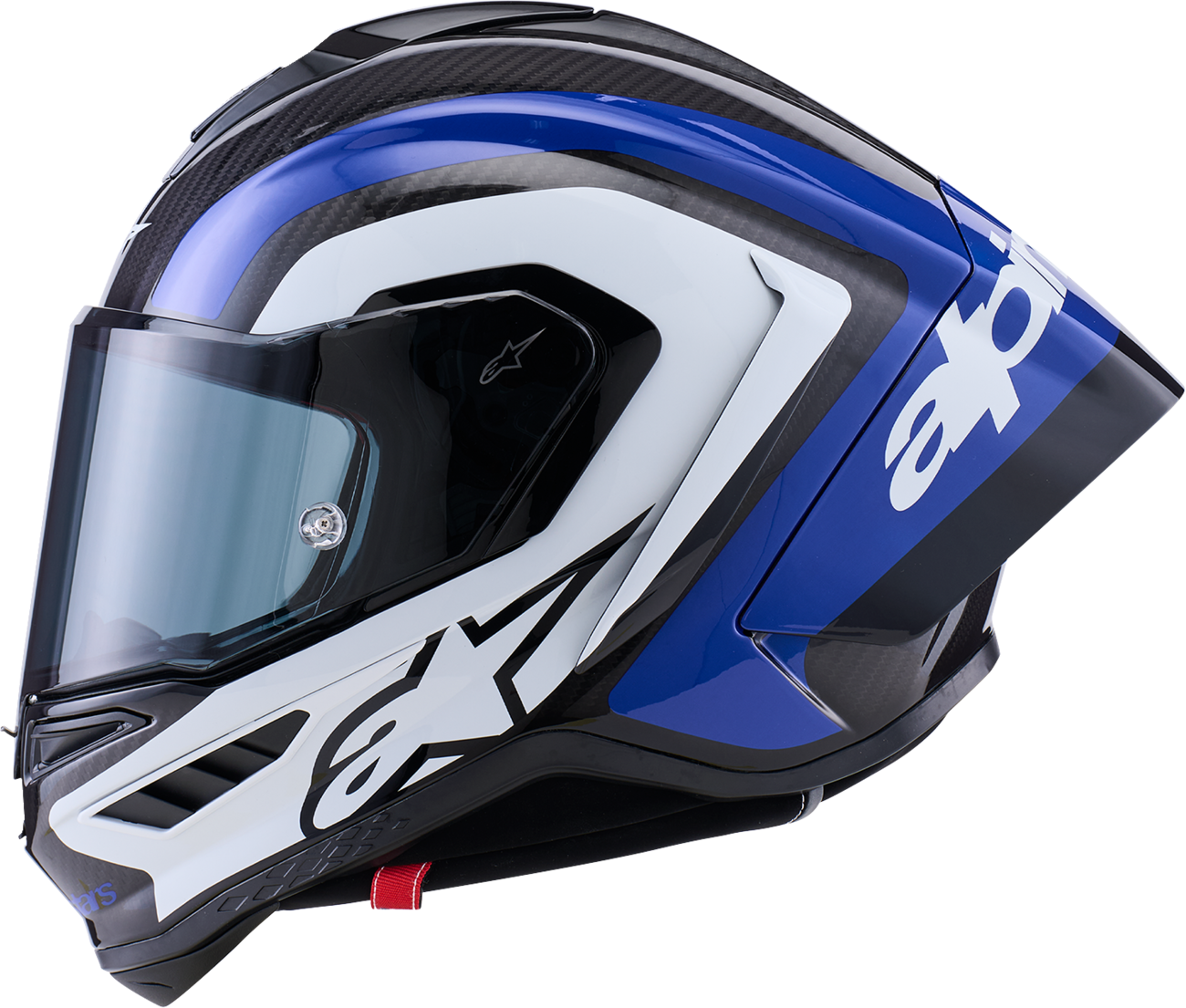

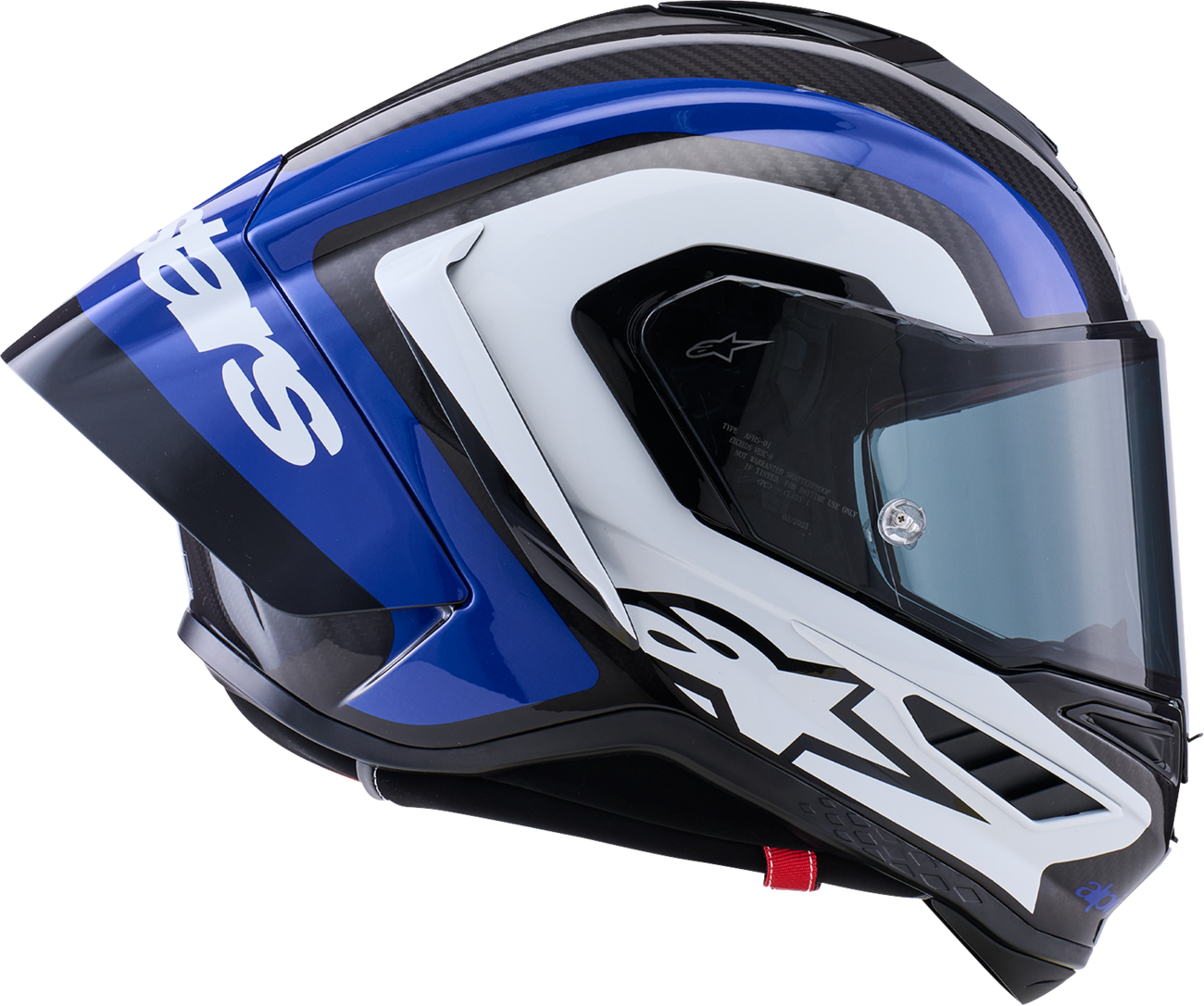

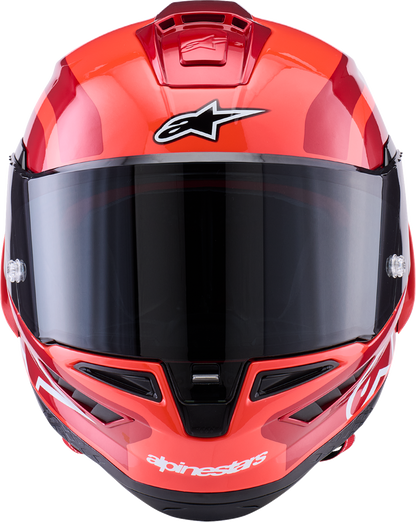

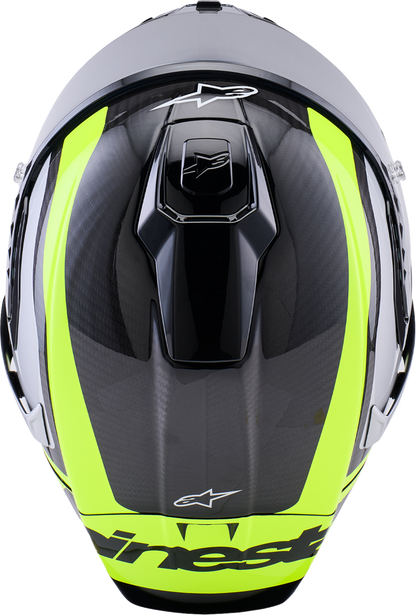

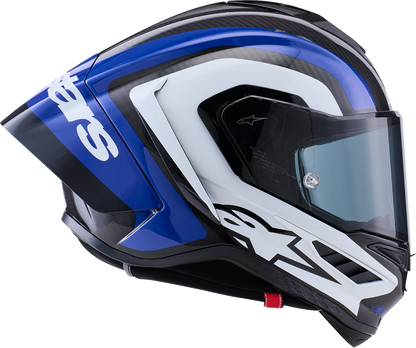

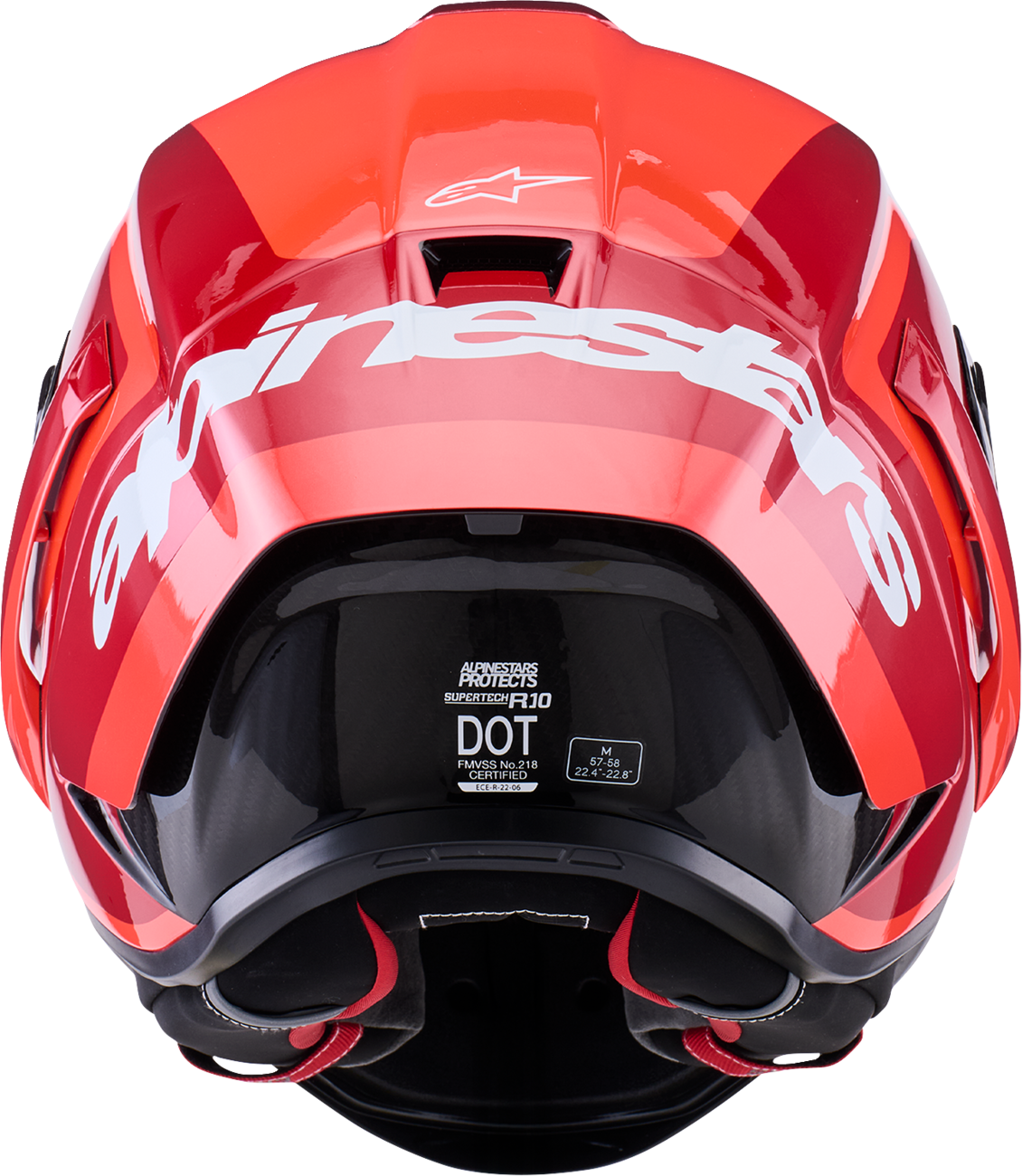

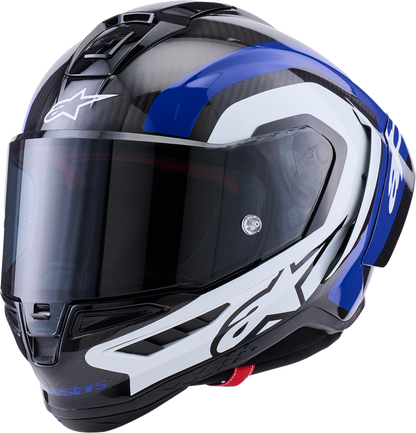

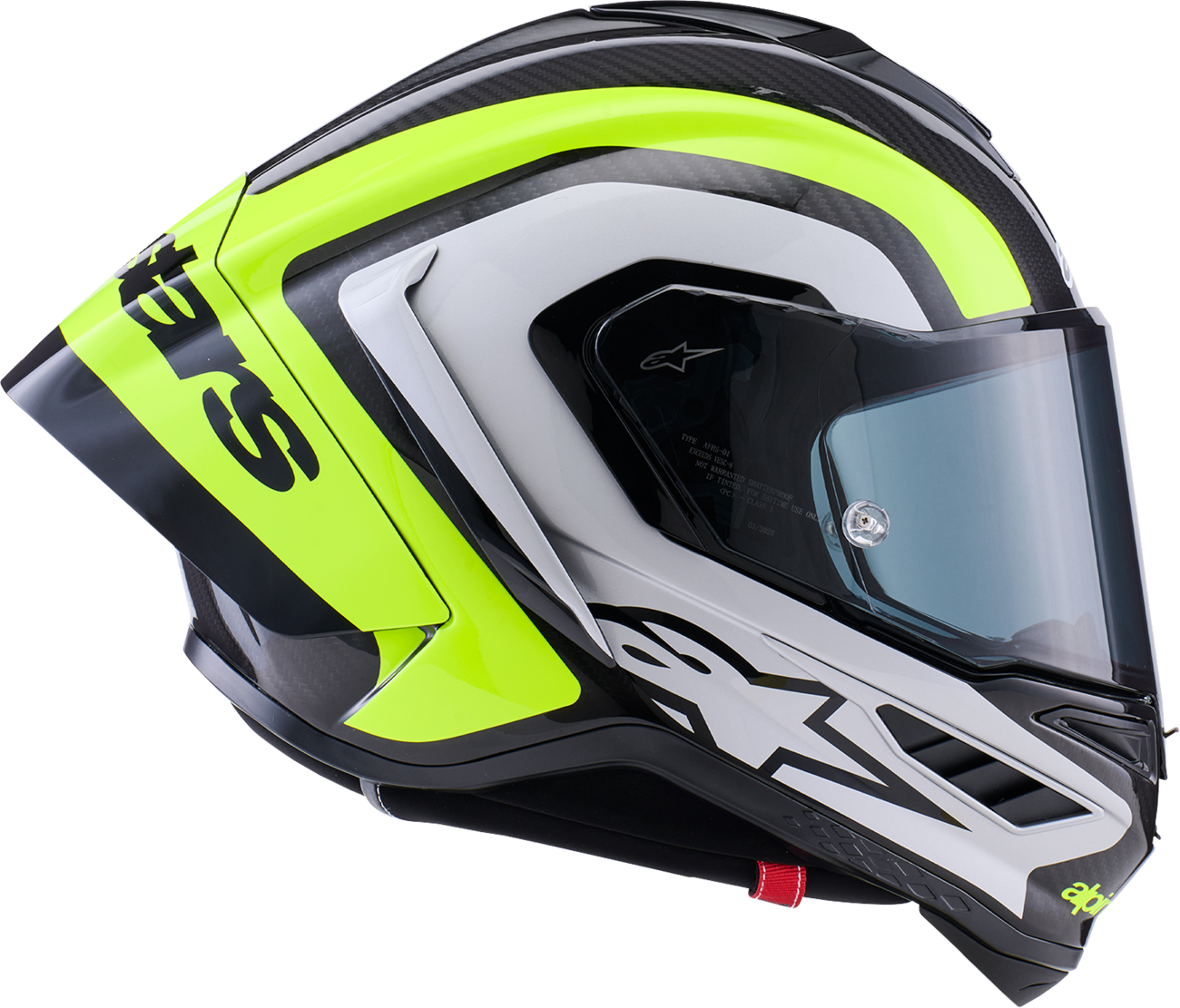

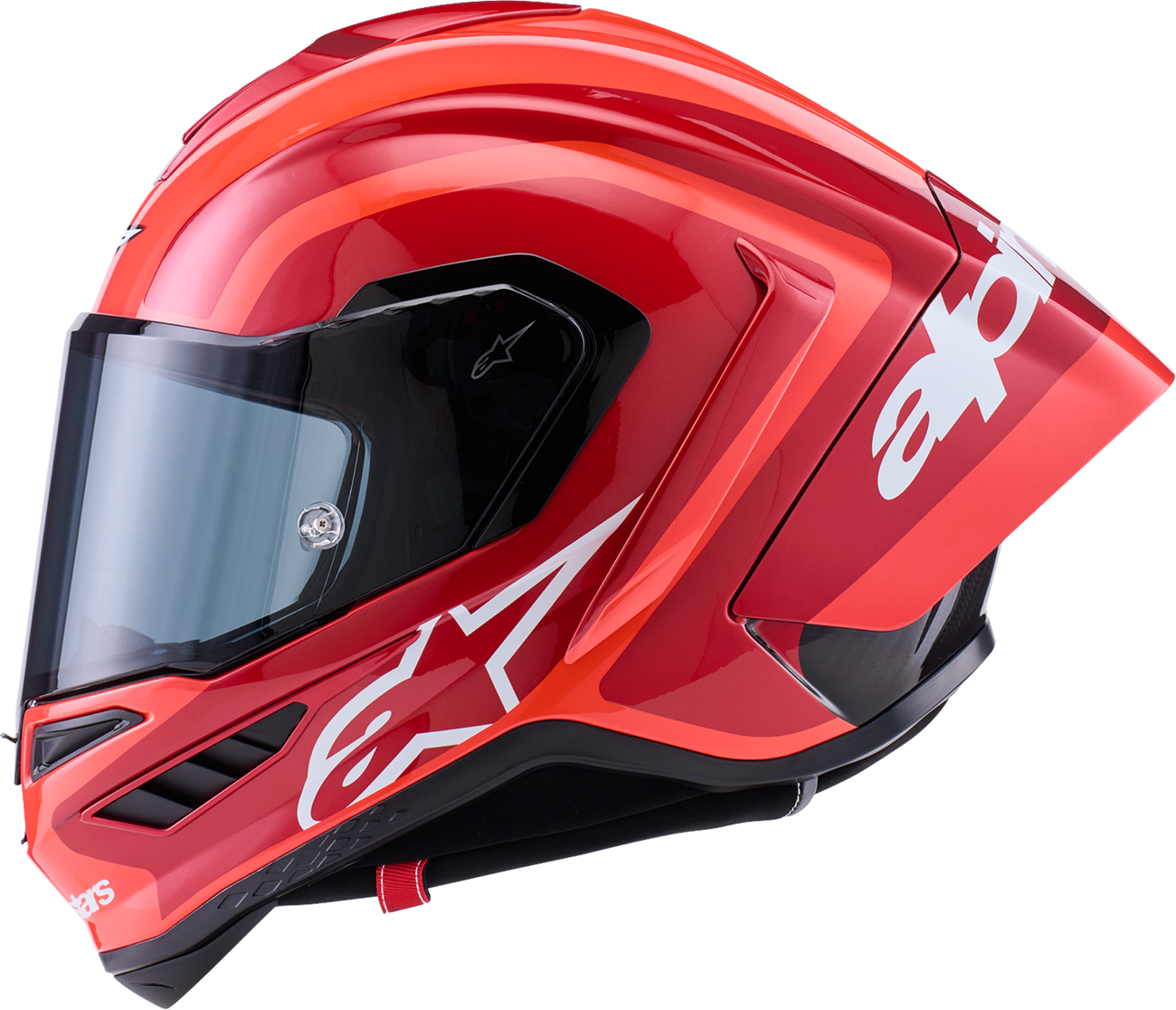

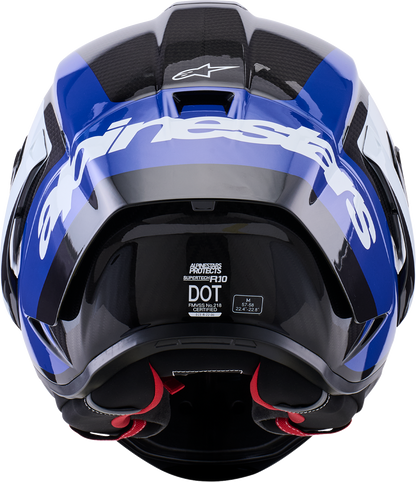

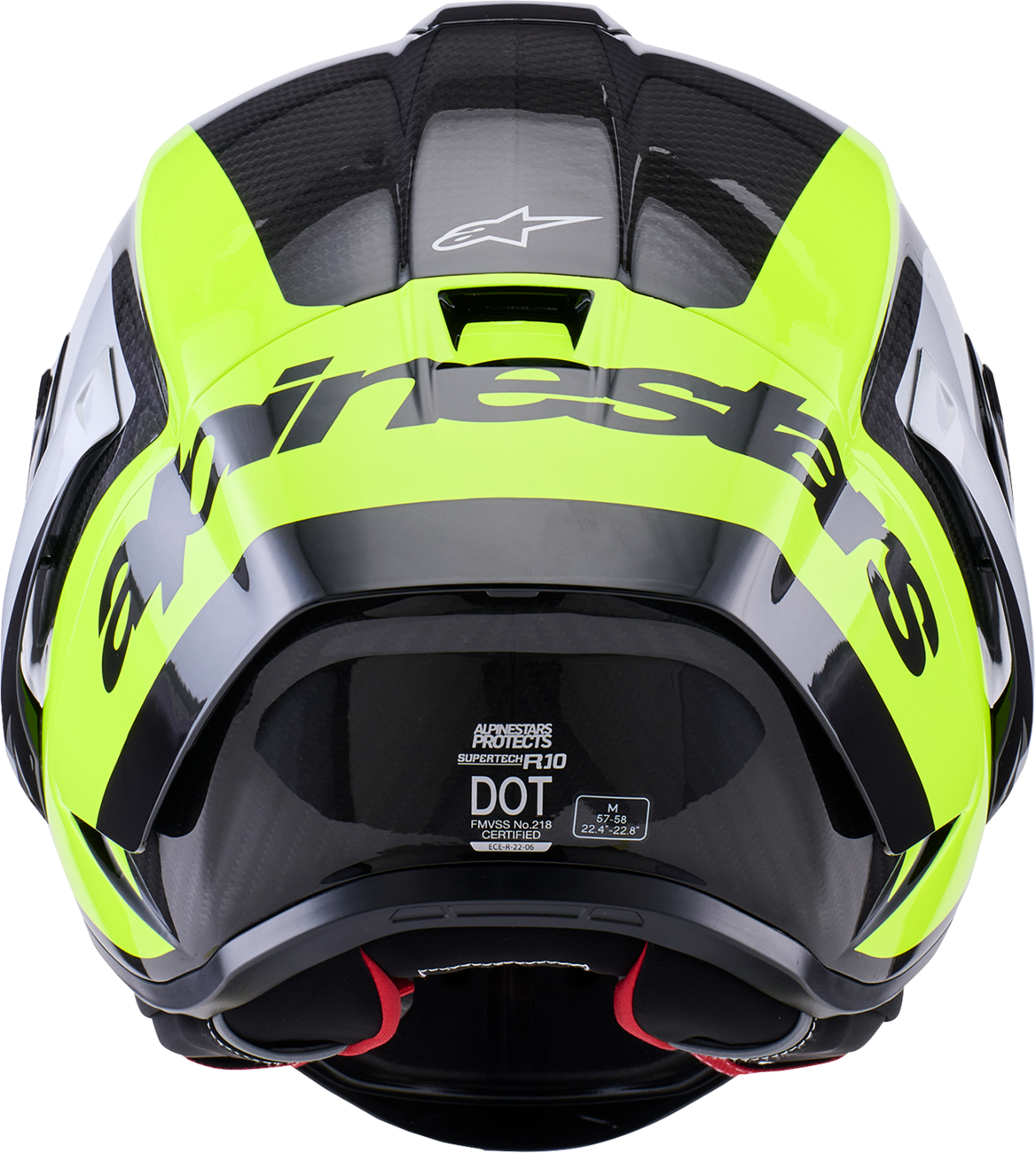

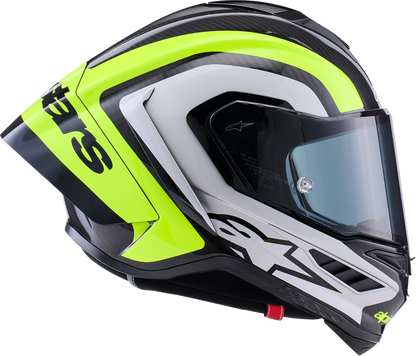

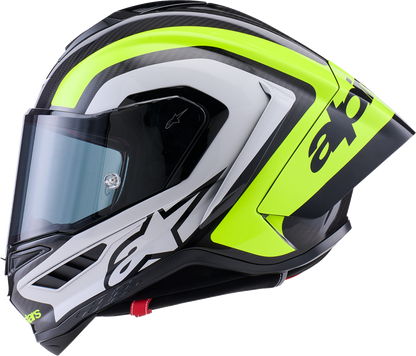

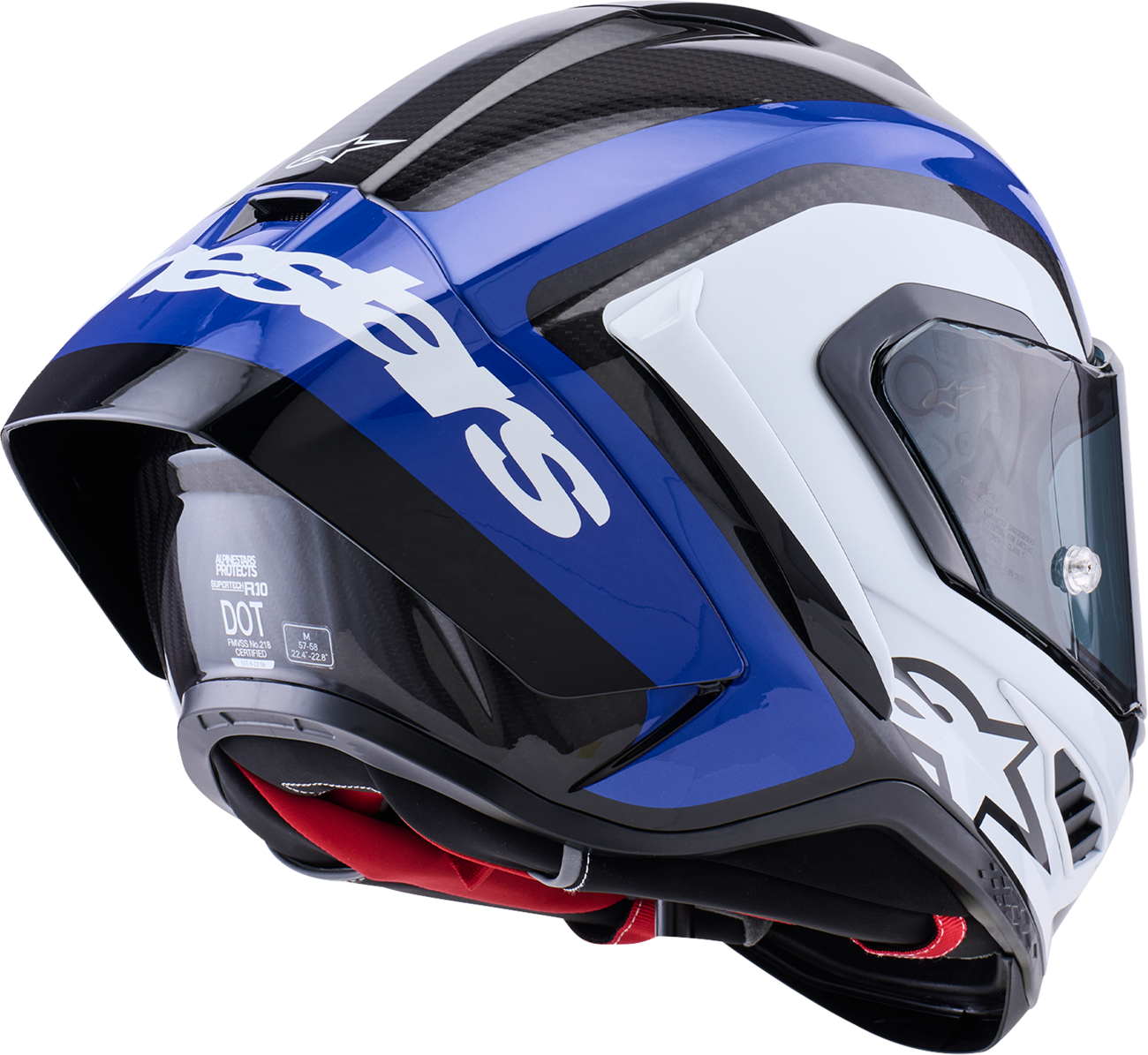

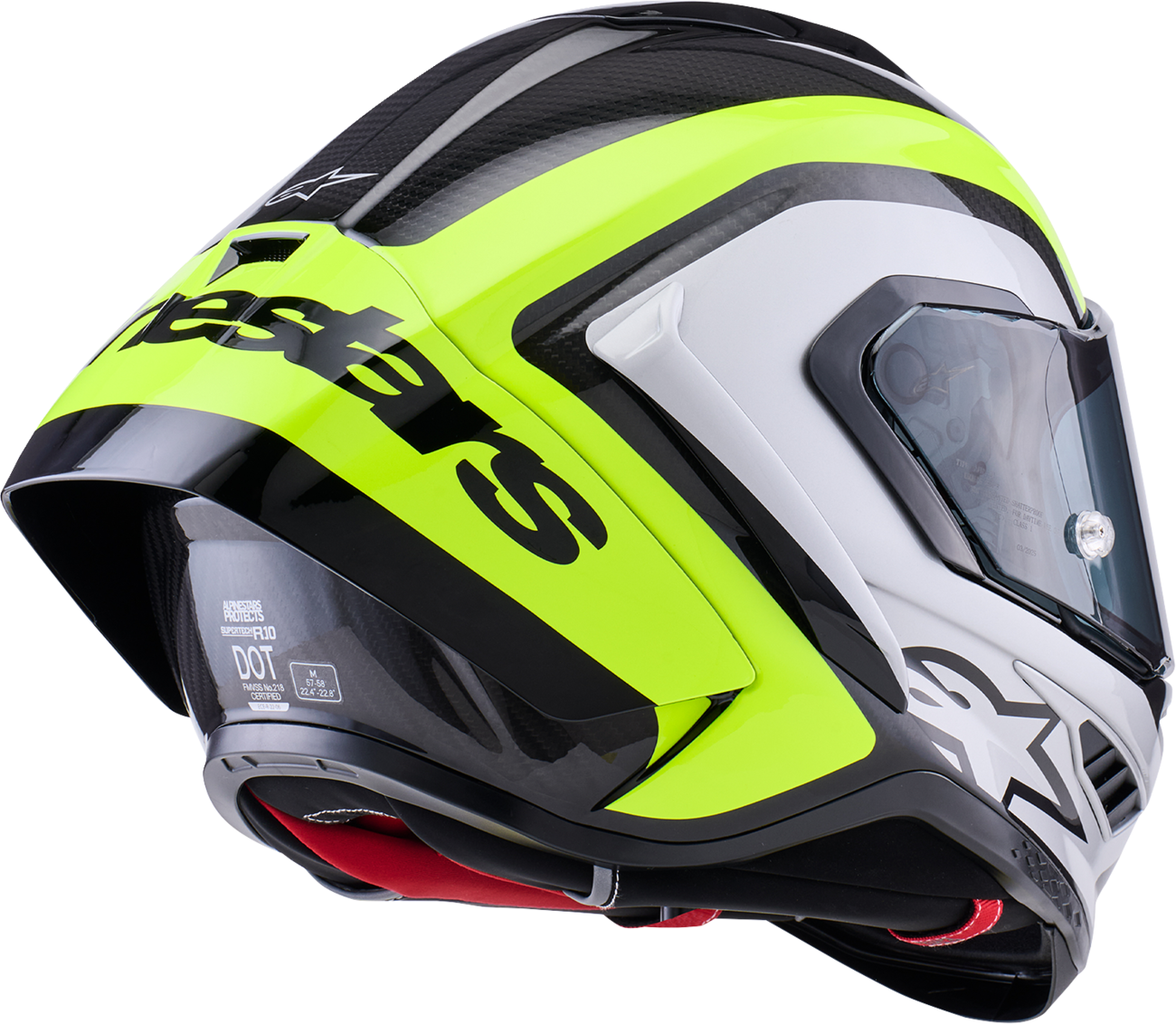

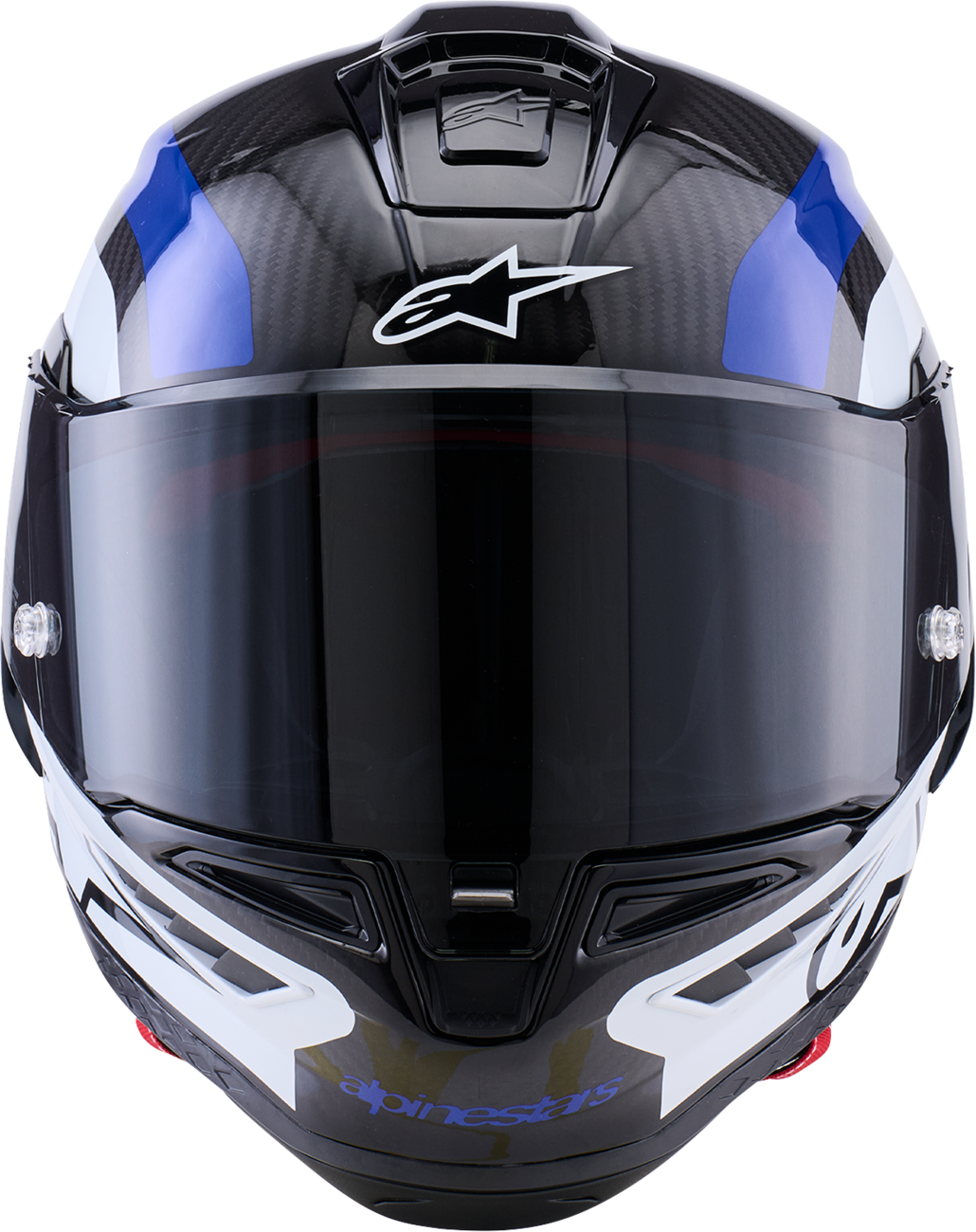

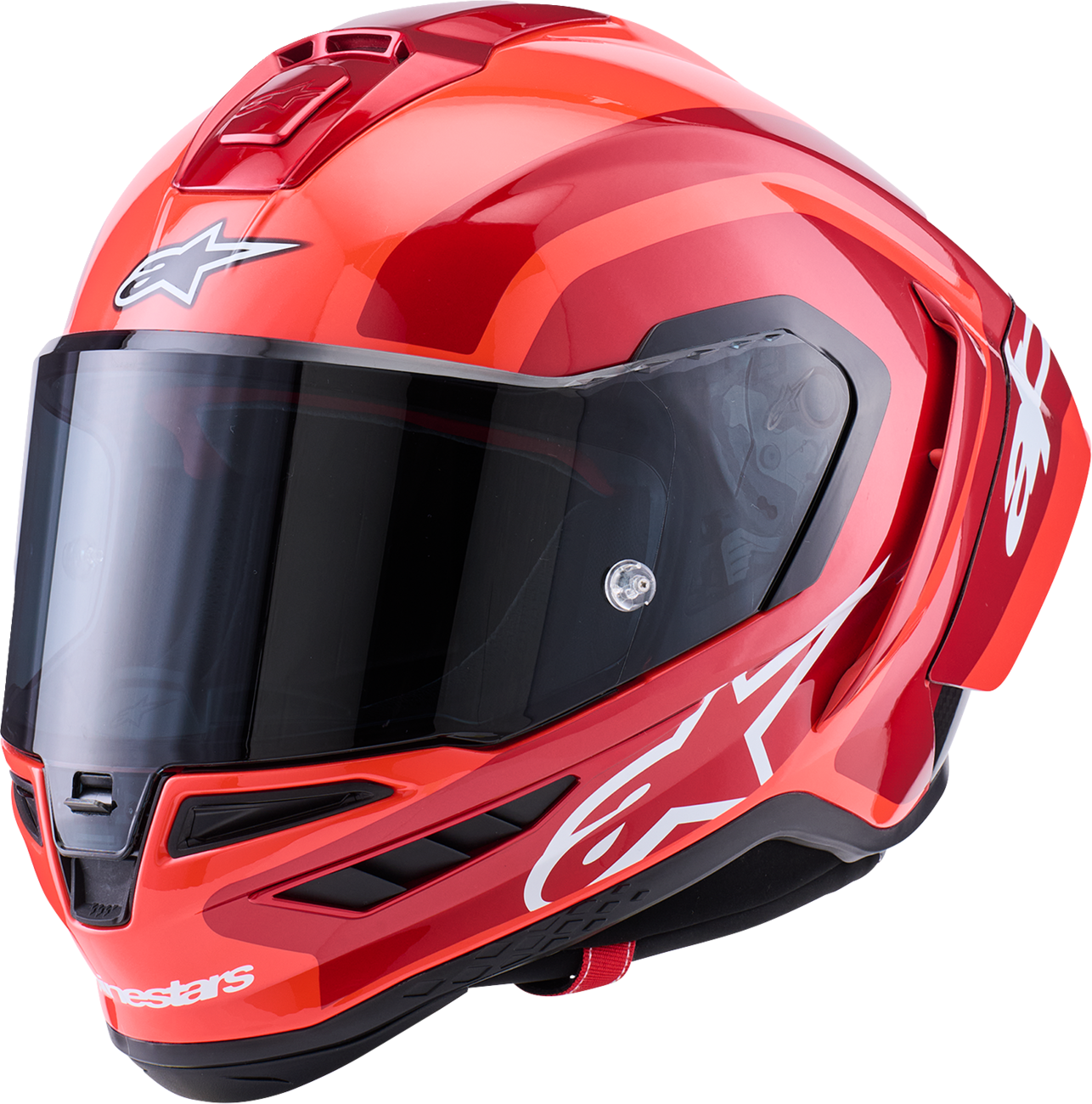

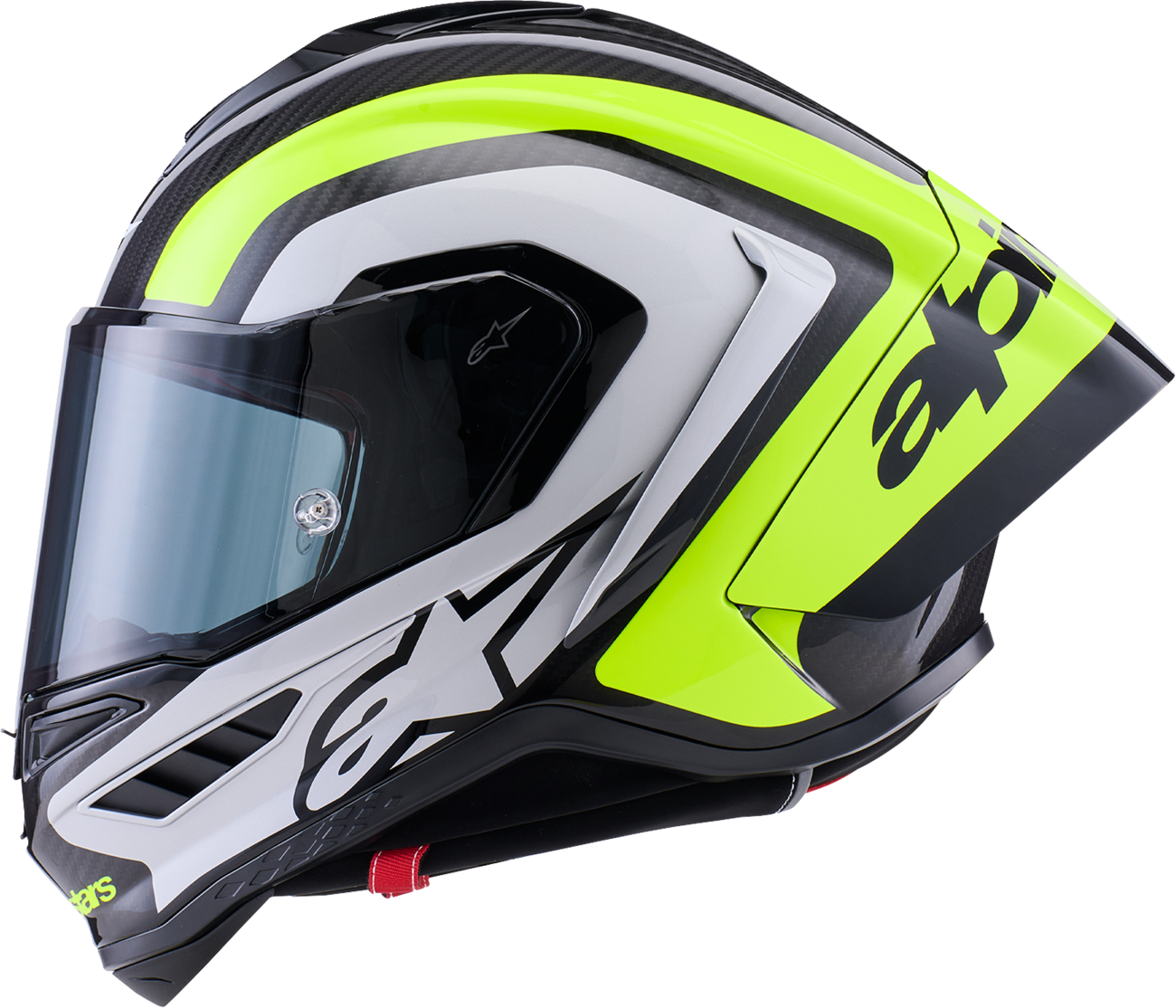

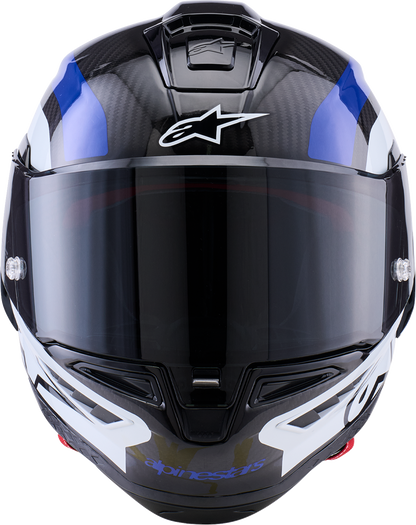

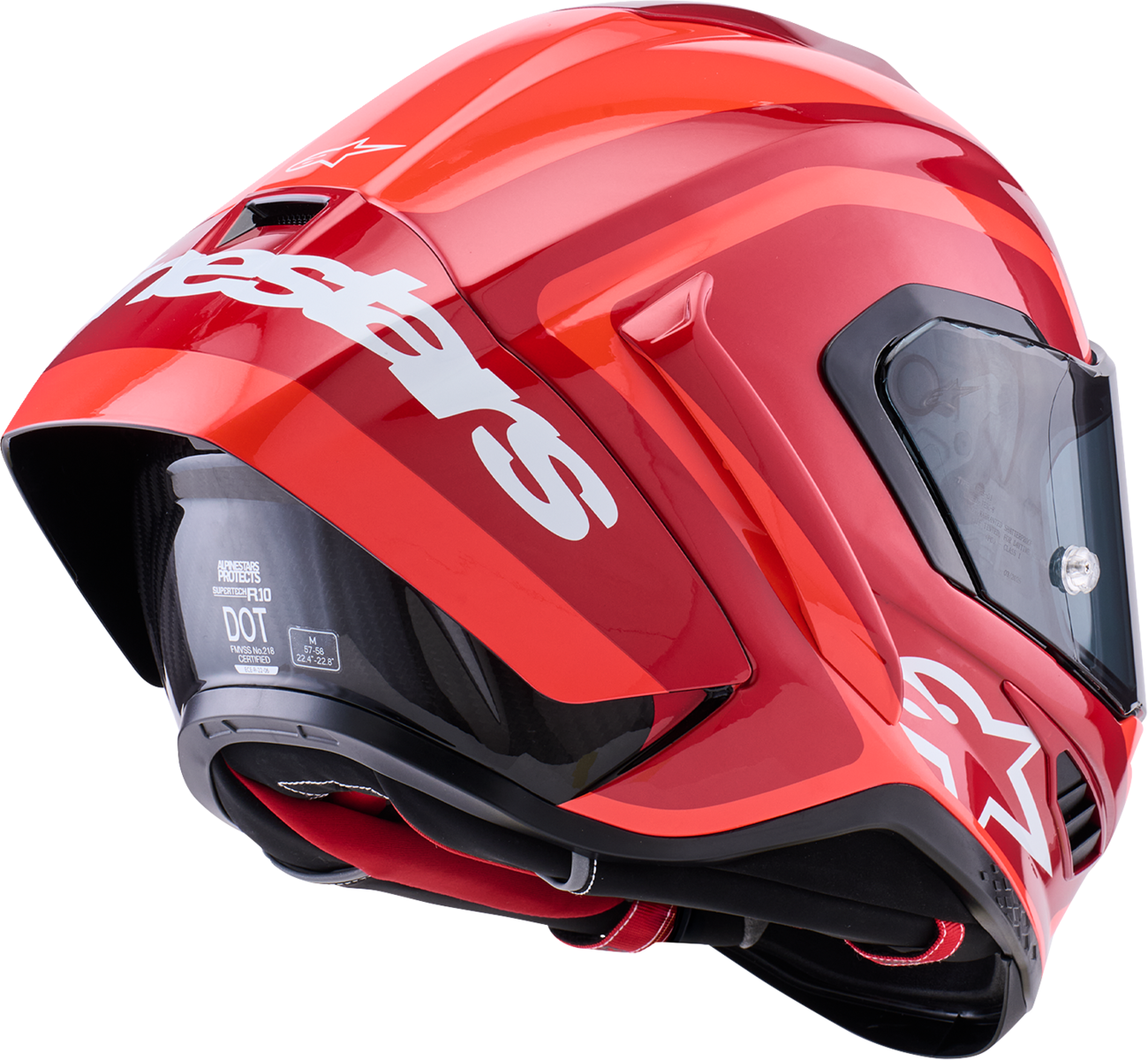

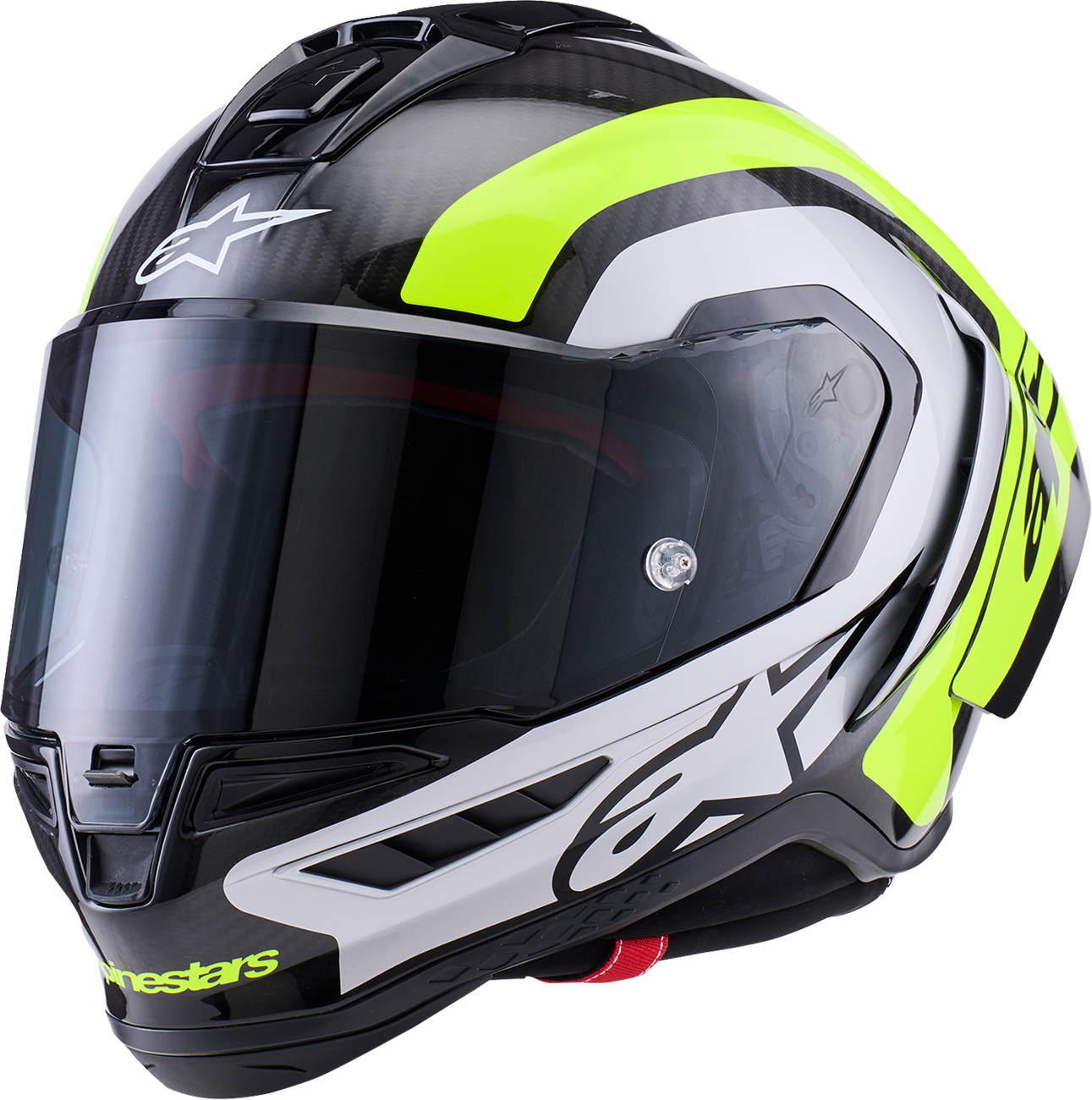

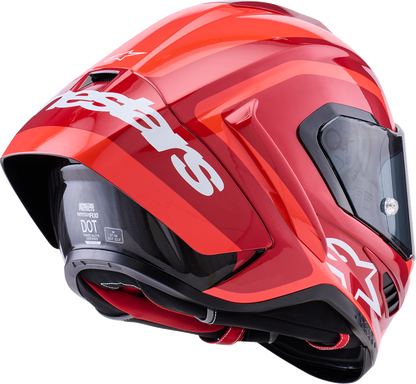

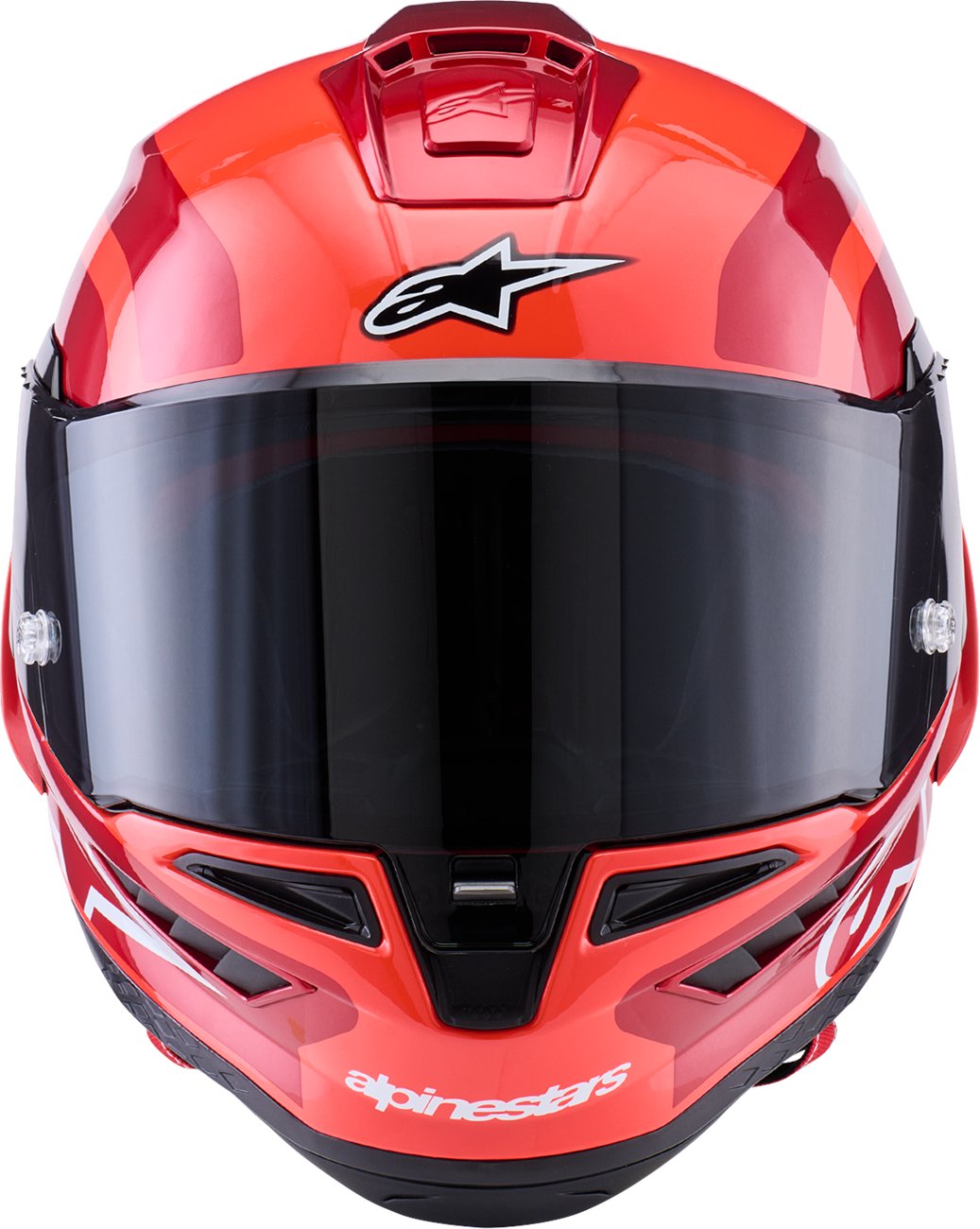

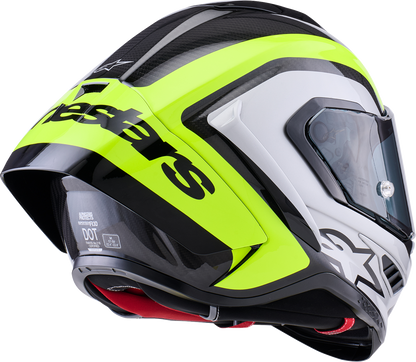

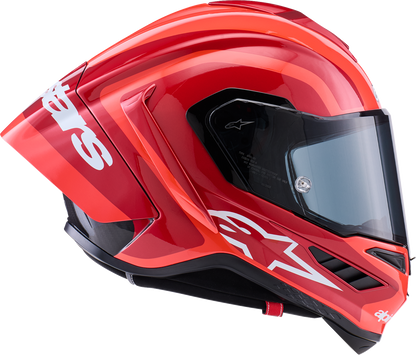

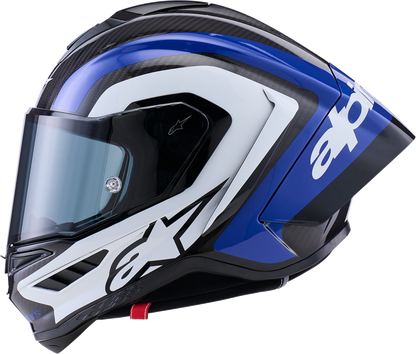

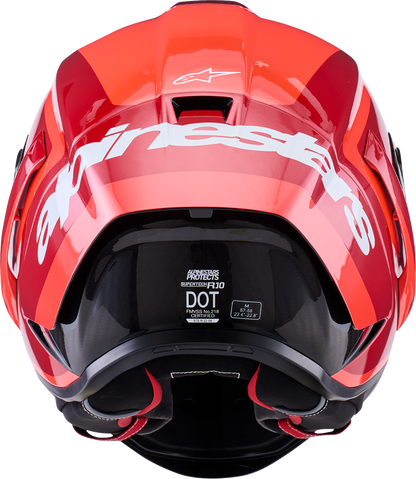

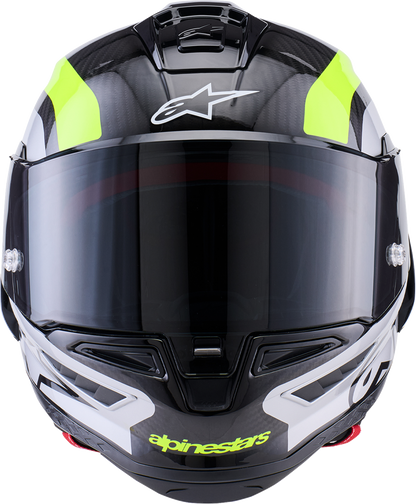

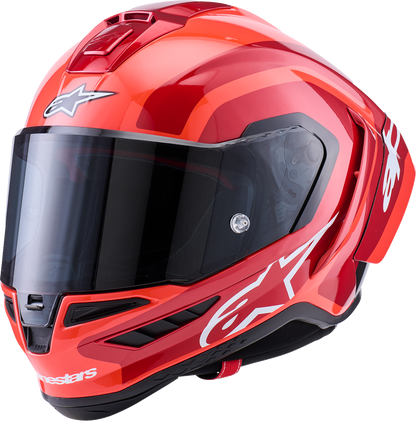

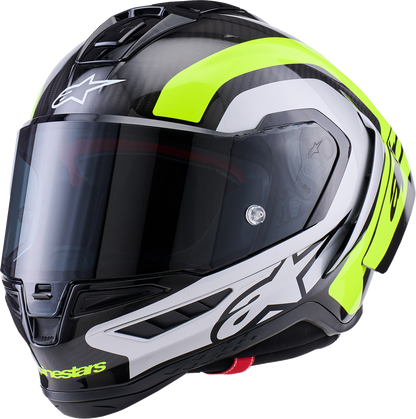

ALPINESTARS Supertech R10 Helmet

The Supertech R10 Helmet represents the pinnacle of racing technology, engineered to provide professional-grade protection, aerodynamics, and performance for the most demanding riders. Certified to ECE 22.06 standards, this helmet utilizes advanced molding technology and multi-composite construction to ensure maximum safety and high-speed stability on the track.

Advanced Shell Construction

The outer shell features a sophisticated multi-composite combination, including a 3K high-density carbon outer layer, a uni-directional carbon composite layer, aramid fiber, and fiberglass. Bonded with high-performance epoxy resin, this layered design maximizes strength and mechanical performance while maintaining an incredibly lightweight profile. This construction effectively manages impact energy by spreading forces wider to be better absorbed by the internal liner.

Precision Impact Management

The interior is equipped with an eight-piece multi-density EPS liner featuring six specific densities strategically positioned for superior energy absorption. To mitigate rotational and oblique forces, the inner surface of the EPS is polished and specially coated to create a low-friction area. This allows the comfort liner to move independently against the EPS, significantly reducing the force transmitted to the head and neck during an impact.

A-Head Fitment System

Achieve a personalized fit with the patented A-Head Fitment System. This technology allows riders to adjust the height and angle at which the helmet sits on the head, ensuring a perfect field of vision and optimized comfort for any riding position.

Aerodynamics and Ventilation

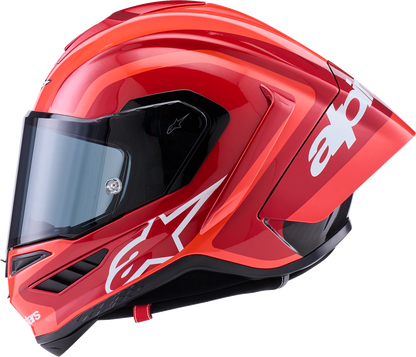

Developed through extensive CFD simulations and wind tunnel testing, the aerodynamic profile is optimized for low drag and maximum stability. Lateral winglets and visor turbulators further enhance aero-acoustic performance. The comprehensive ventilation system includes:

• 11 ventilation points: 7 intakes and 4 exhausts.

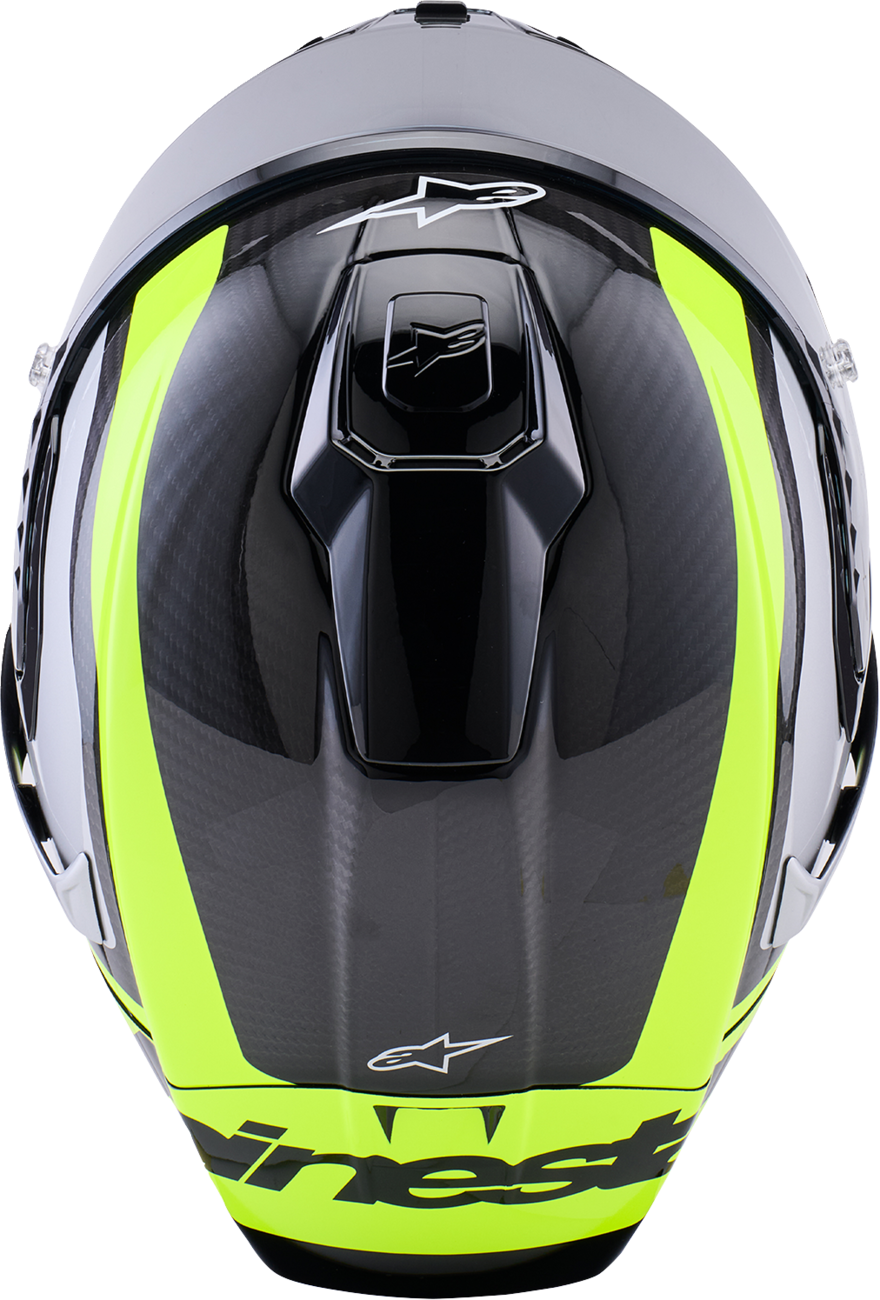

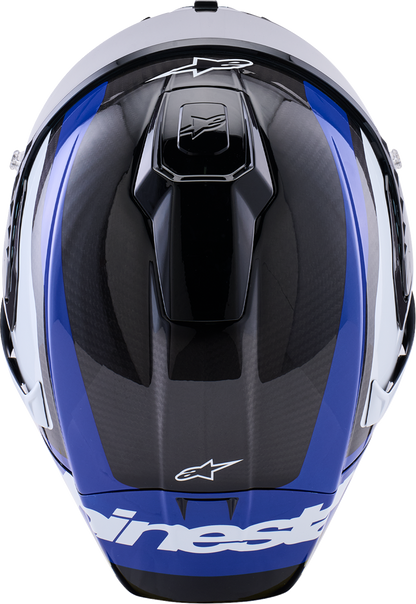

• A top vent with a large central slider for direct forehead cooling.
• Chin vents that create laminated airflow to prevent shield fogging and misting.

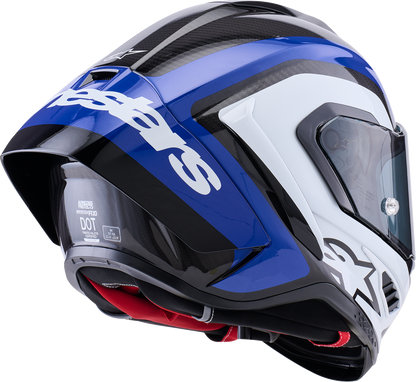

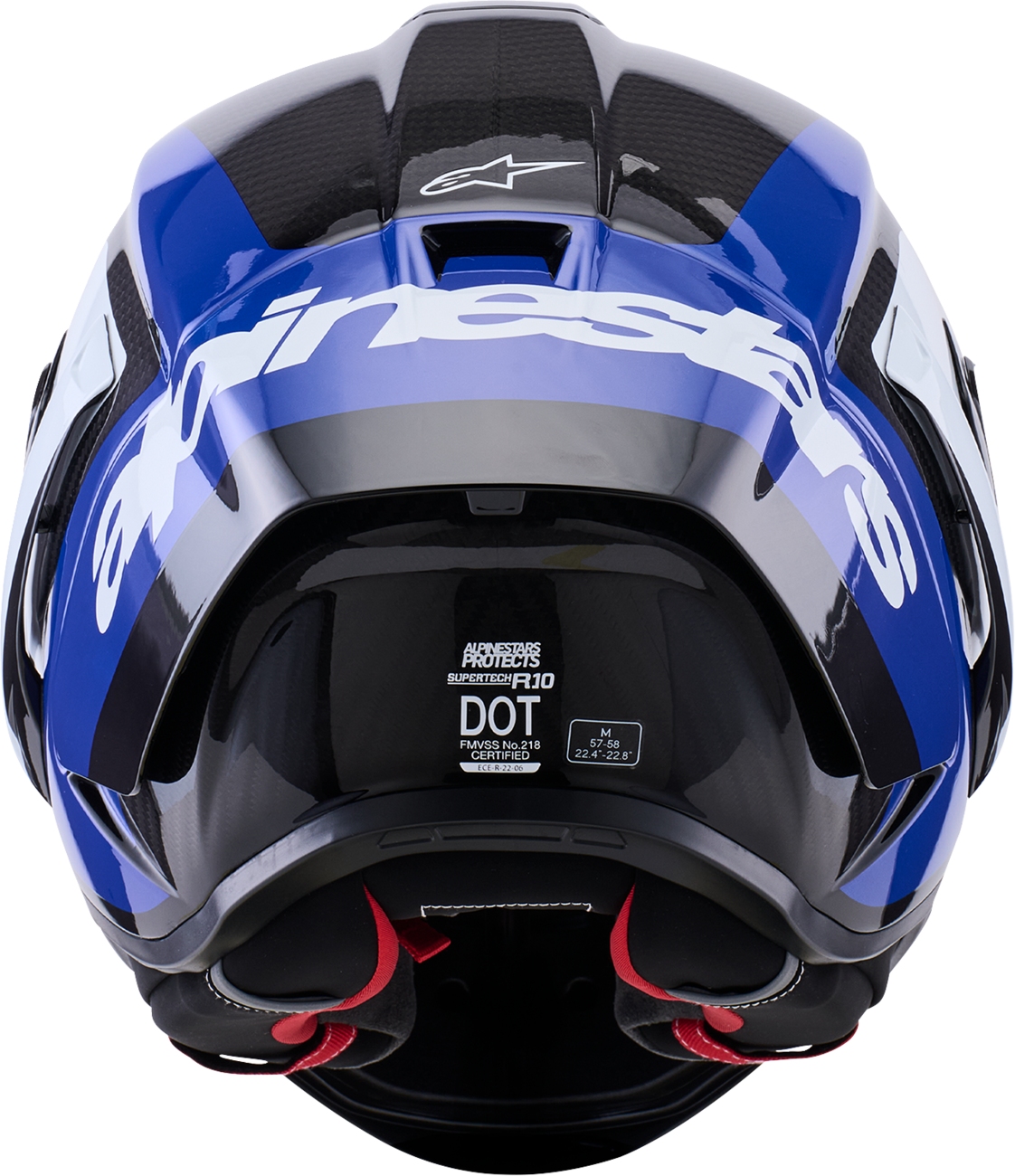

• Rear extractor vents located under the spoiler for efficient hot air removal.
• Internal air channels integrated directly into the EPS liner for active circulation.

Technical Specifications

• ECE 22.06 Certified.
• 4 dedicated inner shell sizes for optimized fit and weight.
• 3K high-density carbon composite shell construction.
• Multi-density EPS liner for linear and oblique force management.
