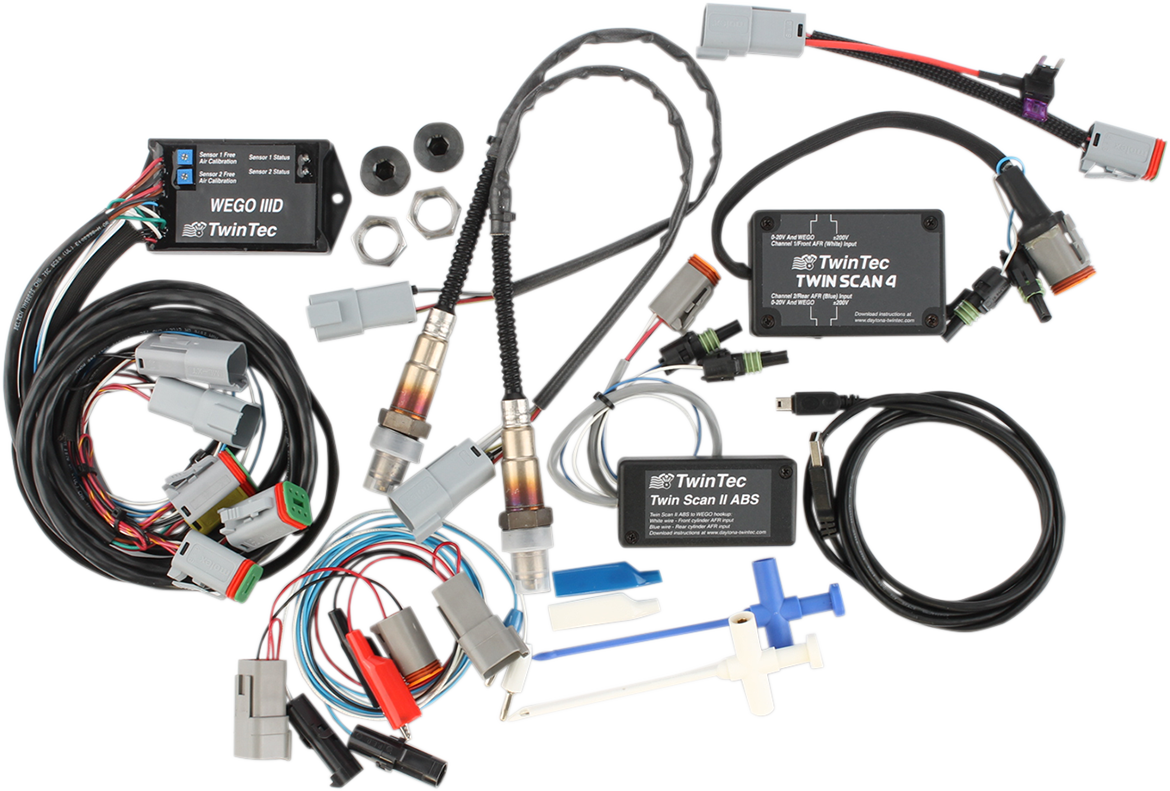

Diagnostic Scan Tool - Twin Scan - Complete - Kit
Complete tuning and diagnostic solution, Communicates with ECM and BCM to read, then clear diagnostic trouble codes, Activates ABS solenoids for proper brake bleeding and testing, Ideal tuning aid for Screamin' Eagle Pro Super Tuner (SEST), Dynojet Power Commander (PC) and Twin Tec Twin Tuner, Includes all features of the standard twin scan units, Real-time display of engine sensors along with built-in data logging with capability to store data for up to one hour, Included PC software analyzes logged data, then displays front and rear cylinder AFR with the required volumetric efficiency (VE) using the same RPM rows and TPS/MAP columns in the Super Tuner tables, Includes two analog inputs with 0-21 V or ± 200 V range as well as two-channel oscilloscope capability for waveform display, Analog inputs can also be used for air/flow ratio (AFR), Complete Kit Includes:, Twin Scan II ABS for models with J1850 data bus, Twin Scan IV for models with CAN data bus with six position DLC connector, WEGO IIID for tuning capability with both twin scan versions, Twin Scan III probe kit for use with the scopemeter feature of the twin scan, Two Bosch LSU 4.2 wide-band oxygen sensors, Two 18 mm x 1.5 weld nuts, Two 18 mm x 1.5 hex socket plugs, USB cable, CD-ROM with software, Requires use of a PC with Windows 7/8/10/11 for display.
